Inside the PhD Student Network: Econometrics and Business Statistics at Monash University

How this was made

viewof show_code = Inputs.select(['hidden', 'visible']);
html`
<style>
.code-fold {
  display: ${show_code != 'visible' ? 'none' : 'block'};
}
@media print {
  .hide-button {
    display: none;
  }
  .code-fold > summary {
    display: none;
  }
}
</style>`

show_code = "hidden"

html`To learn more about how the output in this article was created you can choose to show the code I used. Currently the code in this article is &nbsp;<span class="dropdown-container" style="width: 5rem;">${viewof show_code}</span>.`

To learn more about how the output in this article was created you can choose to show the code I used. Currently the code in this article is

hiddenvisible

.

In this article, I explore an idea suggested by Floyd Everest, which involves analysing the connections between PhD students through shared supervisors using a graph structure. By treating both students and academic staff as nodes, and supervisory relationships as edges, we can visualise the structure of academic mentorship as a network. This may offer insight into the flow of knowledge, influence, and collaboration within the Department of Econometrics and Business Statistics (EBS) at Monash Business School. Krisanat Anukarnsakulchularp already created an SVG version of this network and gave me some pointers for how I can scrape the data. I share my attempts at visualising this network interactively. I also explore the data further.

library(purrr)
library(dplyr)
library(readr)
library(stringr)
library(visNetwork)
library(ggplot2)
library(tidyr)
library(patchwork)

url_list <- paste0('https://www.monash.edu/business/research/our-researchers/graduate-research-students-and-supervisors?queries_degree_query=Econometrics+and+Business+Statistics&queries_degree_query_posted=1&result_1619149_result_page=', 1:4)
get_data <- function(url) {
  page <- rvest::read_html(url)
  image_links <- page |>
    html_elements(".box-listing-element__thumb-link") |>
    map(\(x)list(image = html_element(x, 'img') |> html_attr("src"),
                     name = html_element(x, 'img') |> html_attr("alt"),
                 website = html_attr(x, 'href'))) |>
    bind_rows()
  page |>
    html_elements(".box-listing-element__blurb") |>
    map(\(x) {
      elements <- html_children(x)
      list(
        name = elements[[1]] |>
          rvest::html_text(),
        description = elements[[2]] |>
          rvest::html_text() |>
          str_trim(),
        supervisors = elements[[3]] |>
          rvest::html_text() |>
          str_split('\r\n') |>
          pluck(1, 1) |>
          str_trim() |>
          str_remove('Supervisors: ') |>
          str_split_1('(,| and )') |>
          str_trim() |>
          # Thank you Krisanat for the following line
          str_remove("Prof |A/Prof |Dr |Prof. |Dr. |Assoc Prof. |Professor ")
      )
    }) |>
    reduce(bind_rows) |>
    inner_join(image_links, by = join_by(name))
}
if(!file.exists('students.csv'))  {
  students <- url_list |>
    map(get_data) |>
    bind_rows() |>
    mutate(
      supervisors = case_when(
        supervisors %in% c("David Frazier", "David T. Frazier") ~ "David Frazier",
        supervisors %in% c("Di Cook", "Dianne Cook") ~ "Dianne Cook",
        supervisors %in% c("Farshid Vahid", "Farshid Vahid-Araghi") ~ "Farshid Vahid",
        supervisors %in% c("Gael M. Martin", "Gael Martin") ~ "Gael Martin",
        supervisors %in% c("Rob Hyndman", "Rob J Hyndman") ~ "Rob Hyndman",
        supervisors %in% c("Susan VanderPlas", "Susan Vanderplus") ~ "Susan VanderPlas",
        supervisors %in% c("Thiyanga S. Talagala", "Thiyanga Talagala") ~ "Thiyanga Talagala",
        TRUE ~ supervisors
      )
    ) |>
    rename(supervisor = supervisors)
  write_csv(students, 'students.csv')
}
students <- read_csv(
  'students.csv',
  col_types = cols(
    name = col_character(),
    description = col_character(),
    supervisor = col_character(),
    image = col_character(),
    website = col_character()
  )
)
if (!file.exists('staff.csv'))  {
  staff <- rvest::read_html('https://www.monash.edu/business/econometrics-and-business-statistics/our-people/staff-directory') |>
    rvest::html_elements('.group-list') |>
    map(\(tbl) {
      tbl |>
        rvest::html_elements('.row') |>
        map(\(x) {
          list(
            name = x |>
              rvest::html_element('strong') |>
              rvest::html_text() |>
              str_trim(),
            website = x |>
              rvest::html_element('a') |>
              rvest::html_attr('href'),
            image = x |>
              rvest::html_element('img') |>
              rvest::html_attr('src'),
            description = x |>
              rvest::html_element('ul') |>
              rvest::html_elements('li') |>
              rvest::html_text() |>
              paste0(collapse = ', ')
          )
        })
    }) |>
    bind_rows() |>
    mutate(website = ifelse(str_detect(website, 'mailto'), '', website))
  write_csv(staff, 'staff.csv')
}
staff <- read_csv(
  'staff.csv',
  col_types = cols(
    name = col_character(),
    website = col_character(),
    image = col_character(),
    description = col_character()
  )
)

students |>
  count(name, image) |>
  pmap(\(...) list(...)) |>
  walk(\(x)download.file(x$image, destfile = paste0('images/',
    janitor::make_clean_names(x$name), '.jpg'
  )))
staff |>
  count(name, image) |>
  pmap(\(...) list(...)) |>
  walk(\(x)download.file(x$image, destfile = paste0('images/',
    janitor::make_clean_names(x$name), '.jpg'
  )))

student_info <- students |>
  select(name, description, website) |>
  distinct()
staff_info <- staff |>
  select(name, description, website) |>
  bind_rows(students |>
  filter(!supervisor %in% staff$name) |>
  mutate(name = supervisor, website = NA_character_, description = NA_character_)) |>
  distinct()
graph_edges <- students |>
  select(from=name,
         to=supervisor)
all_info <- bind_rows(
  student_info |>
    mutate(group = 'student'),
  staff_info |>
    mutate(group = 'staff')
) |>
  select(name, description, website, group) |>
  mutate(image = glue::glue('images/{janitor::make_clean_names(name, allow_dupes=TRUE)}.jpg'))|>
  mutate(image = ifelse(is.na(website), 'images/default.jpg', image)) |>
  mutate(
    id = name,
    label = name,
    title = case_when(
      is.na(website) ~ glue::glue('{name}<br>{description}', .na = ''),
      T ~ glue::glue('<a target="_blank" href = "{website}">{name}</a><br>{description}', .na = ''))
  ) |>
  distinct() |>
  filter(id %in% c(graph_edges$from, graph_edges$to))
my_visnetwork <- function(nodes, edges, degrees=1) {
  visNetwork(nodes, edges, width = "100%", ) |>
    visLayout(randomSeed = 42) |>
    visNodes(
      shape = "circularImage",
      size = 20,
      borderWidth = 3,
      shapeProperties = list(useBorderWithImage = TRUE)
    ) |>
    visEdges(smooth = T, labelHighlightBold = FALSE) |>
    visOptions(
      highlightNearest = list(
        enabled = TRUE,
        degree = degrees,
        labelOnly = TRUE,
        hover = FALSE,
        algorithm = "hierarchical"
      )
    ) |>
    visInteraction(
      tooltipStyle = 'position: fixed;visibility:hidden;padding: 5px;
                  font-family: verdana;font-size:14px;font-color:#000000;background-color: #f5f4ed;
                  -moz-border-radius: 3px;-webkit-border-radius: 3px;border-radius: 3px;
                   border: 1px solid #808074;box-shadow: 3px 3px 10px rgba(0, 0, 0, 0.2);
                   max-width:200px;word-break: normal;',
      selectConnectedEdges = FALSE
    )
}
only_students <- inner_join(
  graph_edges,
  graph_edges,
  by = join_by(to == to),
  relationship = "many-to-many"
) |>
  rename(title = to,
         from = from.x,
         to = from.y) |>
  filter(from<to)
only_staff <- inner_join(
  graph_edges,
  graph_edges,
  by = join_by(from == from),
  relationship = "many-to-many"
) |>
  rename(title = from,
         from = to.x,
         to = to.y) |>
  filter(from<to)

p_students <- all_info |>
  filter(group == 'student') |>
  select(-group) |>
  my_visnetwork(edges=only_students, degrees = 1)
p_staff <- all_info |>
  filter(group == 'staff') |>
  select(-group) |>
  my_visnetwork(edges=only_staff, degrees = 1)
p_all<- my_visnetwork(all_info, graph_edges, degrees = 1)

Students

---

Staff

---

Students and staff

---

There are some interesting properties of the student network graph.

• All PhD students at EBS are linked to all other PhD students through the network, but the link is surprisingly weak.
• Students appear to cluster based on primary campus. This makes sense as the location of supervisors informs where the student is based. However, there are some exceptions.
• Students appear to cluster loosely based on research interest e.g. Bayesian analysis, analytics, econometrics. Again, there are some exceptions.

Visualising PhD student website domains

get_domain <- Vectorize(function(url) {
  url <- str_remove(url, "^https?://")
  url <- str_remove(url, "^www\\.")
  domain <- str_split(url, "/", simplify = TRUE)[1]
  parts <- str_split(domain, "\\.", simplify = TRUE)
  if (ncol(parts) >= 2) {
    paste0(parts[, ncol(parts) - 1], ".", parts[, ncol(parts)])
  } else {
    domain
  }
})

website_data <- students |>
  distinct(name, website) |>
  mutate(domain = get_domain(website)) |>
  drop_na() |>
  mutate(personal_website = case_when(
    str_detect(domain, 'linkedin|.edu') ~ domain,
    T ~ 'Personal website'
  )) |>
  mutate(custom_domain = case_when(
    str_detect(domain, 'google.com|linkedin.com|netlify.app|.edu|github.io') ~ F,
    T ~ T
  )) |>
  mutate(suffix = str_extract(domain, '\\.[a-z]{2,3}'))
n_na <- students |> filter(is.na(website)) |> count(name) |> nrow()

There were 3 students with no website linked. The attributes of the remaining websites linked by student profiles are shown in Figure 1. The majority of students linked to a LinkedIn profile, which is not surprising. Unsurprisingly, the “.com” suffix is the most popular, while the “.app” is second most popular as Netlify is a popular free host. Netlify, Google sites, and Github are the hosts used among people that did not have a custom domain. These may be a good place to start for someone needing to host a website. In fact this website is hosted using Netlify at the time of writing.

p1 <- website_data |>
  count(personal_website) |>
  ggplot(aes(forcats::fct_infreq(personal_website, n), n)) +
      geom_bar(stat='identity') +
      labs(x='', y='Count') +
  theme(axis.text.x = element_text(angle = 45, hjust = 1))
p2 <- website_data |>
  filter(personal_website == 'Personal website') |>
  mutate(custom_domain = ifelse(custom_domain, "Custom domain", "Free domain")) |>
  ggplot(aes(x = forcats::fct_infreq(suffix), fill = custom_domain)) +
  geom_bar() +
  labs(x = "", y='', fill = "") +
  theme(axis.text.x = element_text(angle = 45, hjust = 1),
        legend.position='top')
p3 <- website_data |>
  filter(personal_website == 'Personal website', !custom_domain) |>
  count(domain) |>
  ggplot(aes(forcats::fct_infreq(domain, n), n)) +
    geom_bar(stat='identity') +
    labs(x='', y='') +
    theme(axis.text.x = element_text(angle = 45, hjust = 1))
p1 + p2 + p3 + plot_layout(widths = c(2, 3, 2))

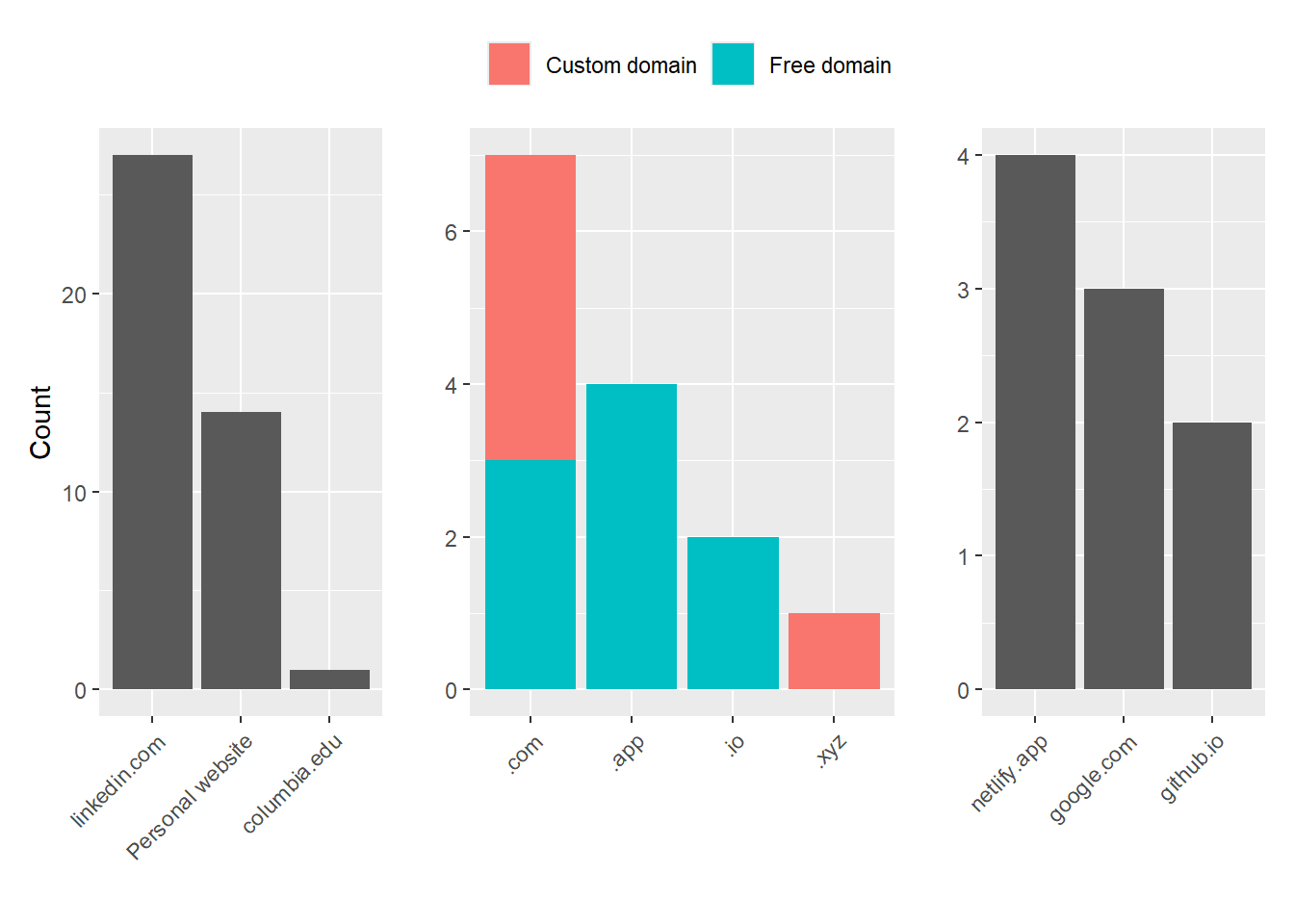

Figure 1: (left) The number of students linking their own website, a social media profile, or academic profile. (middle) The popularity of suffixes for personal websites. (right) The popularity of hosts among the free domains.

Most “popular” supervisors

The supervisors with the most students are shown in Table 1.

students |>
  count(supervisor, name) |>
  group_by(supervisor) |>
  summarise(
    n = n(),
    students = list(sort(name))
  ) |>
  rowwise() |>
  mutate(
    students = paste0(students, collapse = ', ')
  ) |>
  arrange(desc(n)) |>
  filter(n >= 3) |>
  knitr::kable(col.names = c('Supervisor', 'Number of students', 'Students'))

Table 1: The students of each supervisor with at least three students.

Supervisor	Number of students	Students
Dianne Cook	7	Harriet Mason, Janith Wanniarachchi, Jayani P.G. Lakshika, Krisanat Anukarnsakulchularp, Tina Rashid Jafari, Weihao Li, Xuan Nhat Minh Nguyen
Jiti Gao	7	Denghuan Ye, Lu Wang, Pubudika Nambukaluarachchige Dona, Renhe Wang, Taiga Saito, Yueheng Hu, Ziyi Deng
Dan Zhu	5	Lan Luo, Wenjun Shen, Yanhong Wan, Zhixiang (Elvis) Yang, Ziyi Deng
Athanasios Pantelous	4	Asela Perera Nawagamuwage, Haizhou Cui, Ruohua Tang, Zixuan Fang
Bin Peng	4	Denghuan Ye, Lu Wang, Wenjun Shen, Zhixiang (Elvis) Yang
David Frazier	4	Chaya Weerasinghe, Floyd Everest, Jianying Shelly Xie, Kenyon Ng
Rob Hyndman	4	Cynthia A. Huang, Mitchell O’Hara-Wild, Nuwani Kodikara Palihawadana, Sixian Tang
Wei Wei	4	Xiaotong Sun, Yanhong Wan, Yueheng Hu, Yuru Sun
Bonsoo Koo	3	Haizhou Cui, Ze-Yu Zhong, Zixuan Fang
Catherine Forbes	3	Cheok Hang Lei, Filip Reierson, Jianying Shelly Xie
George Athanasopoulos	3	Bets Ruscoe, Mitchell O’Hara-Wild, Shakila Mallawathantrige
Jackie Li	3	Himasha Warnakulasooriya, Shakila Mallawathantrige, Sixian Tang
Michael Lydeamore	3	Jarryd Chapman, Jayani P.G. Lakshika, Krisanat Anukarnsakulchularp
Xibin Zhang	3	Jianfeng Liang, Renhe Wang, Xiaotong Sun
Xueyan Zhao	3	Gayani Ishara Rathnayake, Heshani Madigasekara, Nimni Senanayaka

Most “popular” students

The students with the most supervisors are shown in Table 2.

students |>
  count(supervisor, name) |>
  group_by(name) |>
  summarise(
    n = n(),
    supervisors = list(sort(supervisor))
  ) |>
  rowwise() |>
  mutate(
    supervisors = paste0(supervisors, collapse = ', ')
  ) |>
  arrange(desc(n)) |>
  filter(n > 2) |>
  knitr::kable(col.names = c('Student', 'Number of supervisors', 'Supervisors'))

Table 2: The supervisors of each student with at least three supervisors.

Student	Number of supervisors	Supervisors
Himasha Warnakulasooriya	4	Brett Inder, Hamza Hanbali, Jackie Li, Jessica Leung
Janith Wanniarachchi	4	Dianne Cook, Kate Saunders, Patricia Menendez, Thiyanga Talagala
Jayani P.G. Lakshika	4	Dianne Cook, Michael Lydeamore, Paul Harrison, Thiyanga Talagala
Weihao Li	4	Dianne Cook, Emi Tanaka, Klaus Ackermann, Susan VanderPlas
Asela Perera Nawagamuwage	3	Athanasios Pantelous, Ioannis Kougioumtzoglou, Nikos Kavallaris
Chaya Weerasinghe	3	David Frazier, Gael Martin, Ruben Loaiza-Maya
Cynthia A. Huang	3	Rob Hyndman, Sarah Goodwin, Simon Angus
Gayani Ishara Rathnayake	3	Akanksha Negi, Otavio Bartalotti, Xueyan Zhao
Harriet Mason	3	Dianne Cook, Sarah Goodwin, Susan VanderPlas
Lu Wang	3	Bin Peng, Jiti Gao, Yanrong Yang
Nuwani Kodikara Palihawadana	3	Louise M Ryan, Rob Hyndman, Xiaoqian Wang
Ruohua Tang	3	Athanasios Pantelous, Yulia Merkoulova, Yuxin Xie
Sixian Tang	3	Jackie Li, Leonie Tickle, Rob Hyndman
Xiaotong Sun	3	Heather Anderson, Wei Wei, Xibin Zhang
Yuru Sun	3	Ole Maneesoonthorn, Wei Wei, Yong Song
Zhixiang (Elvis) Yang	3	Bin Peng, Dan Zhu, Farshid Vahid
Zixuan Fang	3	Athanasios Pantelous, Bonsoo Koo, Stavros Stavroglou

Conclusion

This article explored the connections between PhD students and supervisors at Monash University. The network of students and supervisors was visualised using the visNetwork package, revealing clustering based on campus and research interests. The analysis also highlighted particularly connected supervisors and students within the network. I also briefly explored the domains and hosts people used for their personal websites. I will leave more sophisticated analysis of these networks to others, but I hope someone finds this preliminary exploration interesting.
